Technical Specification Sheet

Item	Specification
Product type	Industrial UAV battery pack
Brand	MINYU
Nominal voltage	22.2V, as labeled
Nominal capacity	10000mAh / 10Ah, as labeled
Configuration	6S2P, as labeled
Discharge rating	60C, as labeled; test conditions to be confirmed
Calculated nominal energy	222Wh (22.2V × 10Ah)
Power connector	Yellow connector shown; exact model to be confirmed
Balance connector	White connector shown; exact model and pin arrangement to be confirmed
Battery chemistry	To be confirmed from the approved specification
Dimensions	To be confirmed from the production drawing
Weight	To be confirmed by measurement
Charging voltage and current	To be confirmed from the approved specification
Validated continuous and peak current	Test data required
Cycle life	Test conditions and data required
Certifications and transport documents	Confirm availability for this specific model

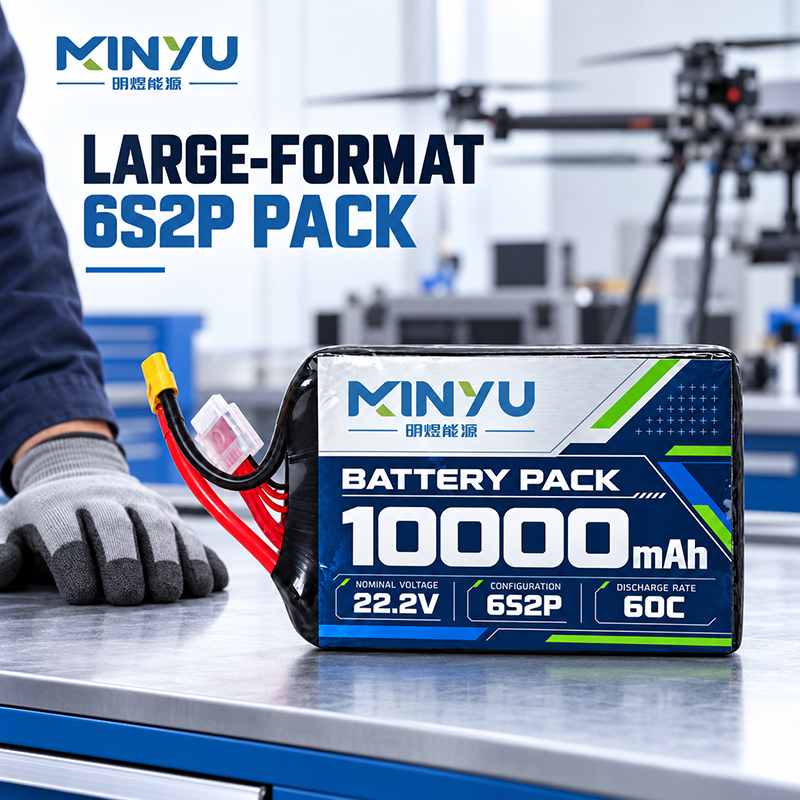

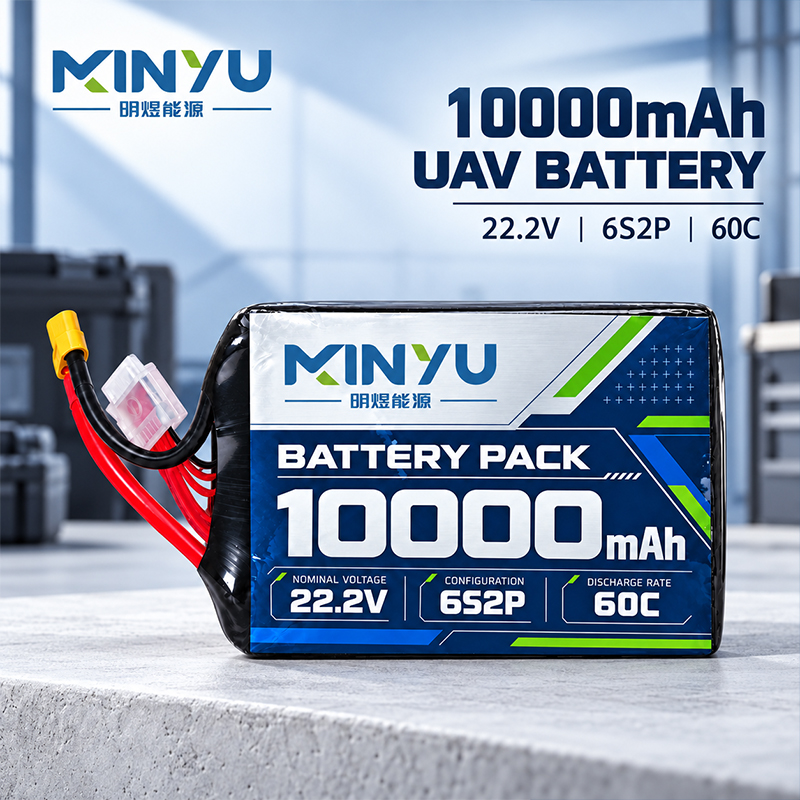

22.2V 10000mAh 6S2P Battery Pack for Industrial UAVs

The MINYU 10000mAh battery pack is a large-format power option for industrial UAV projects. Its product label specifies a 22.2V nominal voltage, 6S2P configuration and 60C discharge rating. The nominal energy calculated from the labeled voltage and capacity is 222Wh.

Industrial drones used for tasks such as reservoir monitoring may carry cameras, sensors or other equipment. Selecting a battery for these aircraft requires more than matching capacity. The pack must fit the battery compartment, connect to the aircraft’s electrical system and meet its continuous and peak current requirements. Actual flight time depends on the aircraft, payload, flight conditions and usable battery capacity; it should be verified through testing on the intended UAV.

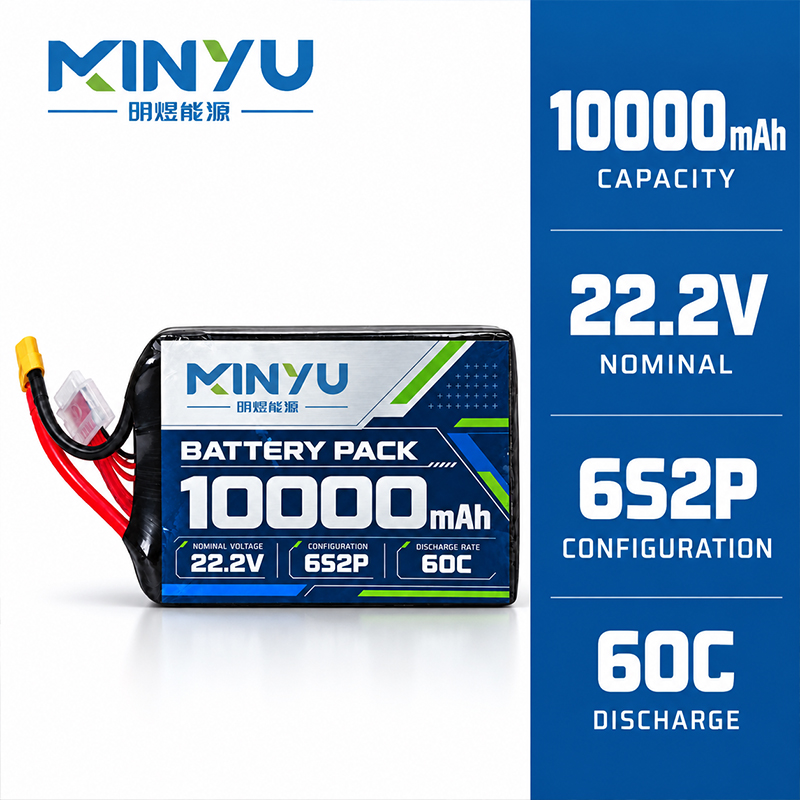

The product images show a yellow power connector and a white balance connector. Please confirm their exact models and pin arrangement before ordering. Pack dimensions, weight, charging limits and validated discharge current should also be checked against the approved technical drawing and test report.

Information Needed for Battery Selection

To help evaluate this pack for your UAV, provide the aircraft model or battery compartment drawing, required voltage, continuous and peak current, connector specifications, maximum allowable dimensions and weight, operating environment and expected order quantity. MINYU can review these requirements with you and discuss a suitable pack and connection arrangement.

Common Questions

Is this battery suitable for my 6S drone?
A matching 6S voltage is only one requirement. Check the connector, physical fit, current demand, aircraft weight limit and charging system before use.

Does the 60C label confirm a specific continuous discharge current?
The images show a 60C marking. Request the test conditions and validated continuous and peak current figures for this specific pack before using those values in an aircraft design.

Q1. Are you a battery manufacturer or a trading company?

A:We are a lithium battery manufacturer with production bases in Dongguan, Guangdong, and Baise, Guangxi, China. Our battery manufacturing operations began in 2013. We integrate battery research and development, production, sales and technical support to serve customers seeking direct factory supply and customized battery solutions.
Q2. What types of batteries do you supply?

A:Our product range includes rechargeable lithium polymer batteries, cylindrical cells such as 18650 and 21700, customized battery packs, portable power stations and residential energy storage batteries. We develop solutions for consumer electronics, wearable devices, smart home products, medical equipment, drones, robots and other applications.
Q3. Do you offer OEM/ODM battery customization?

A:Yes. We provide customized battery development based on your device requirements, including capacity, dimensions, voltage and series-parallel configuration. Our team evaluates the application, electrical requirements and installation space to propose a suitable solution. The final design and specifications are confirmed for each project.
Q4. What information should I provide to select a suitable battery?

A:Please share your device application, operating voltage, continuous and peak current, target capacity or runtime, and available battery space. Connector details, protection requirements, operating temperatures and expected order quantity are also helpful. These details allow our technical team to evaluate compatibility and recommend a suitable battery configuration.
Q5. How do you control battery quality?

A:We combine controlled production conditions, automated manufacturing and in-process inspection with reliability testing. Our inspection capabilities include coating thickness measurement, electrode burr inspection, cell moisture measurement, automated open-circuit voltage testing and CCD inspection during winding. Testing requirements are determined according to the battery design and application.
Q6. Can you develop batteries with special performance requirements?

A:Yes. Our development capabilities include fast-charging, extended-cycle-life, semi-solid-state and high- or low-temperature battery solutions. These features are available for selected designs and are not standard across every model. Please provide your performance targets so our team can evaluate feasibility and confirm the relevant specifications and test conditions.
Q7. How can I arrange samples, and what are your MOQ and lead time?

A:Please send the required battery model or specifications, sample quantity and expected production volume. Our sales team will confirm sample availability, minimum order quantity and the delivery schedule for your project. Custom development and testing requirements should be reviewed before the production timeline is finalized.
Q8. What technical and after-sales support do you provide?

A:We provide coordinated support from product, commercial and technical specialists, covering battery selection, project communication and after-sales enquiries. If an issue occurs, please share the battery model, order details, operating conditions and relevant photos or test data so our team can review the issue and advise on the next steps.
